Passive Speakers / PN-10

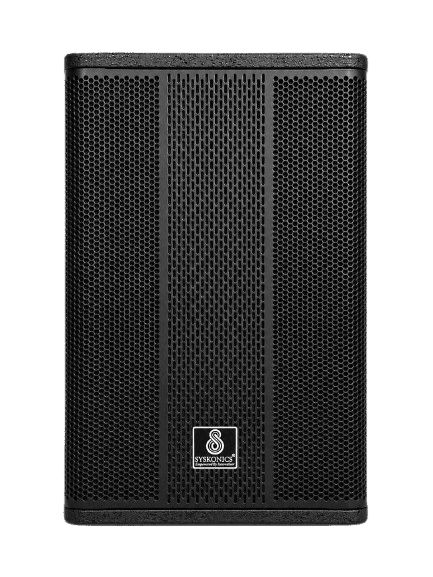

PN-10 150W Passive Speaker
Passive Speaker
150W
Full-range 10" passive speaker delivering deep bass response with exceptional clarity for professional installations.
Key Features
- 10" Full Range Woofer
- 120dB Max SPL
- 95dB Sensitivity
- 70°×55° Dispersion
Technical Specifications
| Slope | -12dB/octave |
|---|---|
| Dimension | 290×480×315mm |
| Impedance | 8 Ohms |
| Dispersion | 70 deg (H) × 55 deg (V) |
| Voice Coil | 38mm |
| Magnet Size | 120×20mm |
| Maximum SPL | 120dB |
| Rated Power | 150W |
| Sensitivity | 95dB |
| Woofer Size | 10" |
| Frequency Response | 62Hz–18kHz (-6dB) |
Applications
- Live Events
- PA Systems
- Venues
- Professional Audio
